Features
Frequency Range:136-174/400-470MHz3W Output Power
99 Channels Capacity
FM Radio
Monitor
Emergency Alarm
Flashlight Illumination
Scanning Function
Battery Power Level
Keypad Lockout Function
CTCSS/DCS
Time Out Timer(TOT)
Time Out Alert(TOA)
Busy Channel Lockout

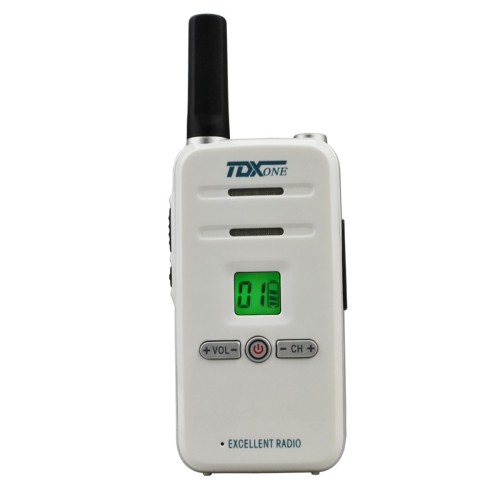

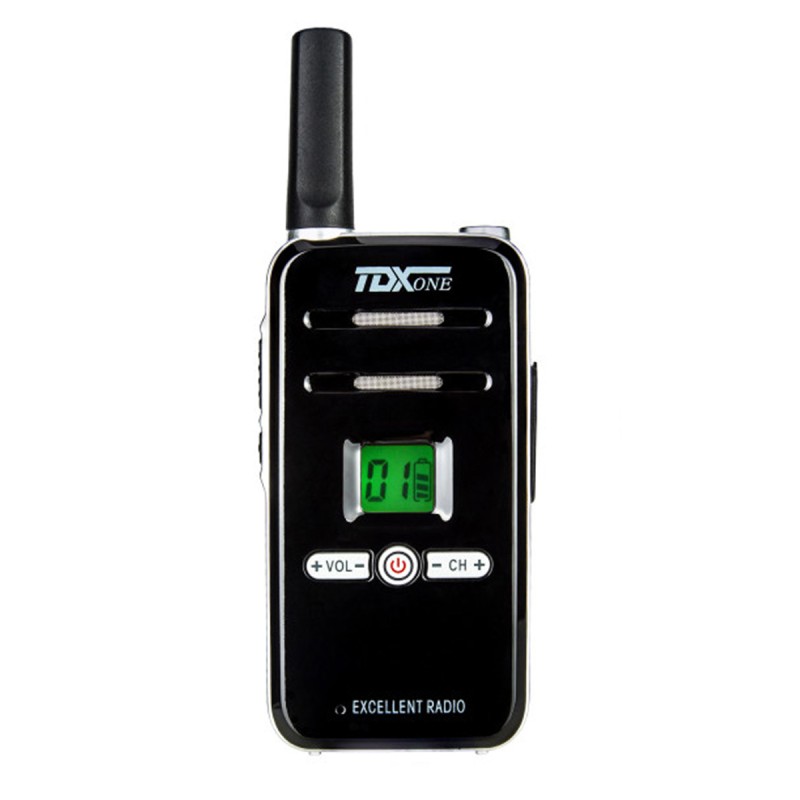

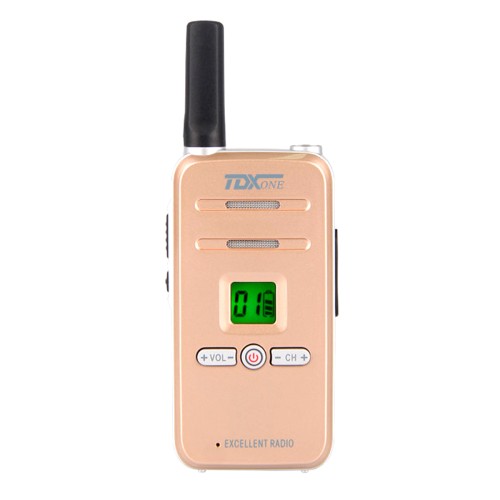

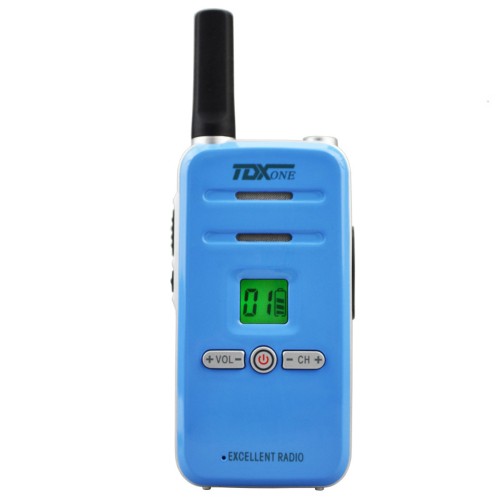

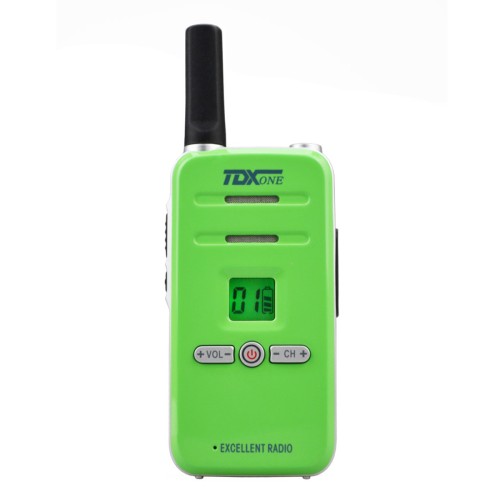

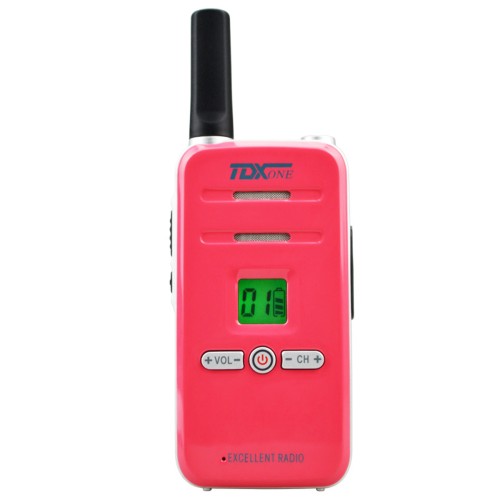

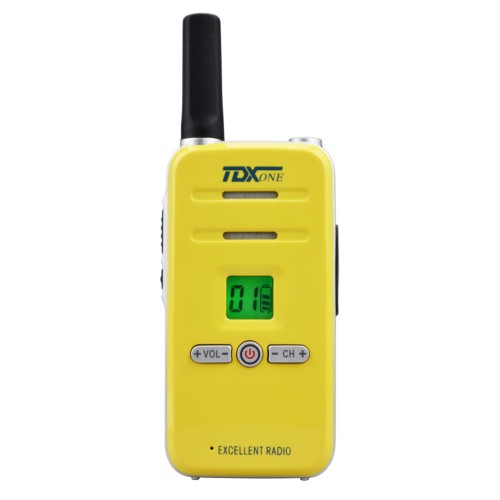

Colourful Housings Are Available
- Model: TD-Q7
- Availability: 1000
- Weight25.00000000
Amazon Hot Selling CE FCC Approved VHF UHF Handy Walkie Talkie TD-Q7
Product Parameters
Related Products
| Frequency/Range | 136-174/400-470MHz |
| Channel/Capacity | 99 |
| Frequency/Spacing | 25/12.5KHz |
| Working/Voltage | 3.7V |
| Battery/Capacity | 1800mAh/Li-ion/battery |
| Frequency/Stability/ | ±2.5ppm |
| Operating/Temperature/Range/ | -25/°C/to/+/55°C/ |
| Antenna/Impedance | 50Ω |
| Dimension/ | Approx:102x52x20mm |
| Weight/(With/Battery) | 145g |
| Transmitter(ETSI/EN/300/086/standard/testing) | |
| Output/Power/ | ≥3W |
| Modulation/Mode | 16KΦF3E///8KΦF3E |
| Modulation/Limited | ±5KHf///±2.5KHf |
| FM/Noise | ≥40/35dB |
| Audio/Distortion/ | ≤5% |
| Residual/Frequency/Modulation | -45dB///-40dB |
| Adjacent/Channel/Power | -70dB///-60dB |
| Spurious/And/Harmonic/Wave | -36dBm<1GHz///-30dBm>1GHz |
| Receiver(ETSI/EN/300/086/standard/testing) | |
| Receiving/Sensitivity | ≤0.18μV///0.22μV |
| Adjacent/Channels/Selectivity/ | ≥70dB/60dB |
| Intermediation | ≥65dB/≥60dB |
| SNR | ≥50/45dB |
| Audio/Output/Power | ≥1W |
| Audio/Distortion | ≤5% |
| Note:Specifications/are/subject/to/change/for/improvements/without/notice. |
