Features
Frequency Range:136-174&400-470MHz5W Output Power
240 Channels Capacity
Wide/Narrow Bandwidth Selectable
Automatic Repeater Shift(ARS)
Frequency Offset Setting
CTCSS/DCS
Priority Channel Scan
Power On Password Setting
7 Backlight Colors
Time&Date Setting
Alarm Clock Setting
Automatic Power Off(APO)
FM Radio
2&5 tone Encoding And Decoding Code
DTMF Function
DTMF Address Book
DTMF Encoding and Decoding
DTMF Stun&Kill Function
Emergency Alarm
Flashlight Illumination
Automatic Contact&Call Function
Meet IP66 Waterproof Level
- Model: TD-A10
- Availability: 1000

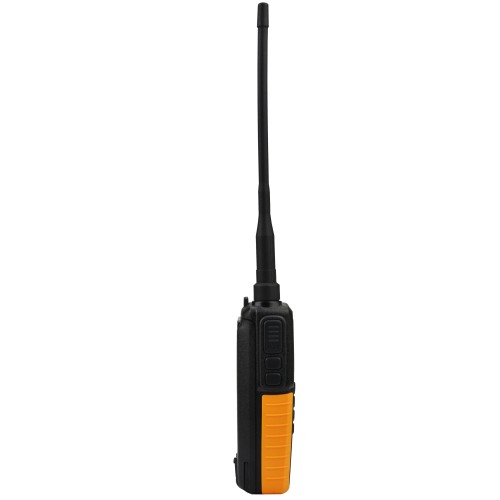

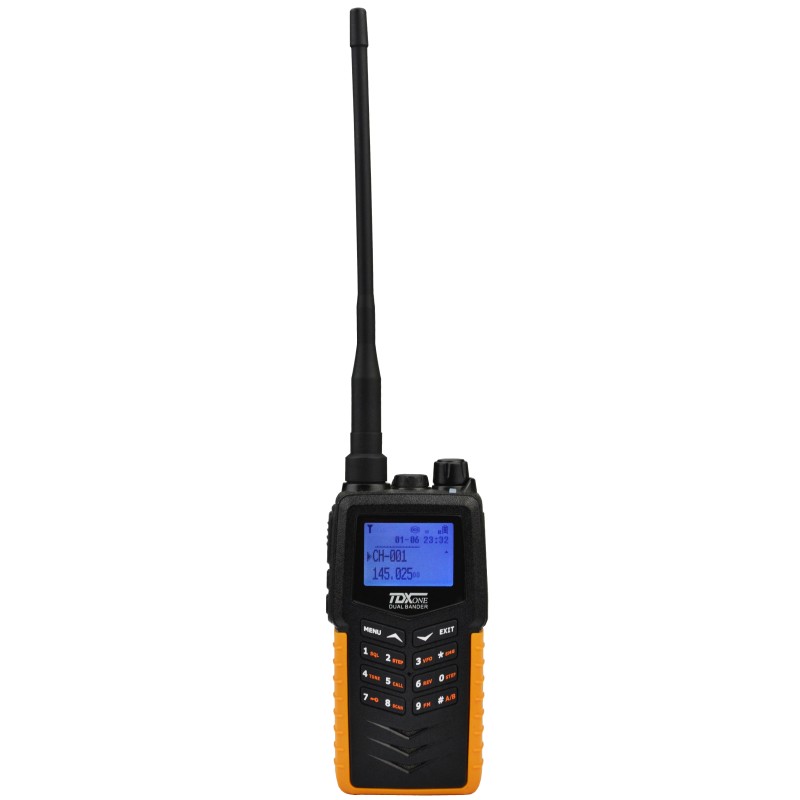

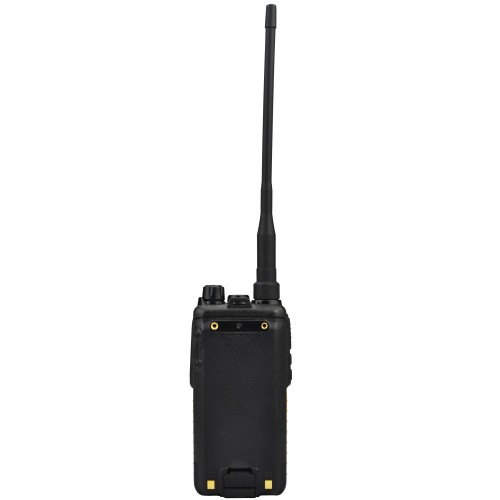

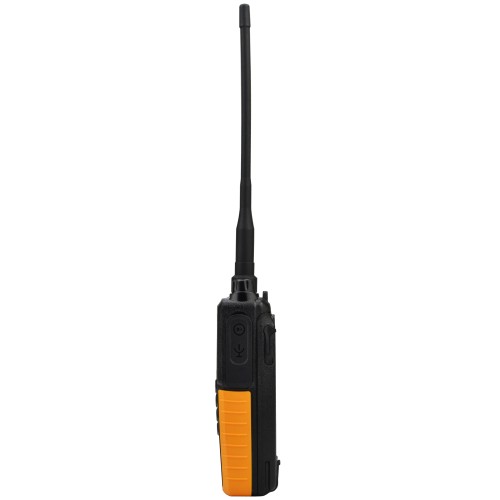

New Long Range High Output Power 10 Watts Dual-band Waterproof Two Way Radio TD-A10
Product Parameters
| General | |
| Frequency Range | 136-174&400-470MHz |
| Channel Capacity | 240 |
| Frequency Spacing | 25/12.5KHz |
| Working Voltage | 7.4V |
| Battery Capacity | 2000mAh Li-ion battery |
| Frequency Stability | ±2.5ppm |
| Operating Temperature Range | -25 °C to + 55°C |
| Antenna Impedance | 50Ω |
| Dimension (Without Antenna) | Approx:119x57x31mm |
| Weight (With Battery) | 220g |
| Transmitter(ETSI EN 300 086 standard testing) | |
| Output Power | 5W/2W/1W |
| Modulation Mode | 16KΦF3E / 8KΦF3E |
| Modulation Limited | ±5KHf/±2.5KHf |
| FM Noise | ≥40/35dB |
| Audio Distortion | ≤5% |
| Residual Frequency Modulation | -45dB/-40dB |
| Adjacent Channel Power | -70dB/-60dB |
| Spurious And Harmonic Wave | -36dBm<1GHz -30dBm>1GHz |
| Receiver(ETSI EN 300 086 standard testing) | |
| Receiving Sensitivity | ≤0.18μV / 0.22μV |
| Adjacent Channels Selectivity | ≥70dB/60dB |
| Intermediation | ≥65dB/≥60dB |
| SNR | ≥50/45dB |
| Audio Output Power | 1W |
| Audio Distortion | ≤5% |
| Note:Specifications are subject to change for improvements without notice. | |
