Features
Frequency Range:136-174/400-470MHz
3W Output Power
99 Channels Capacity
FM Radio
Monitor
Emergency Alarm
Flashlight Illumination
Scanning Function
Battery Power Level
Keypad Lockout Function
CTCSS/DCS
Time Out Timer(TOT)
Time Out Alert(TOA)
Busy Channel Lockout

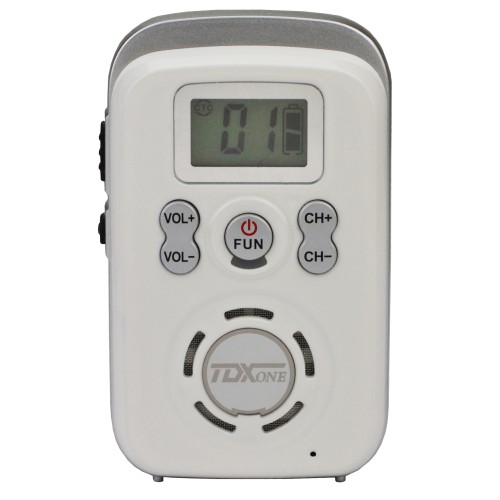

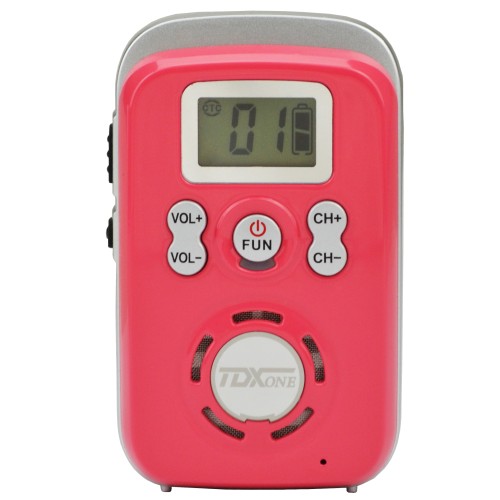

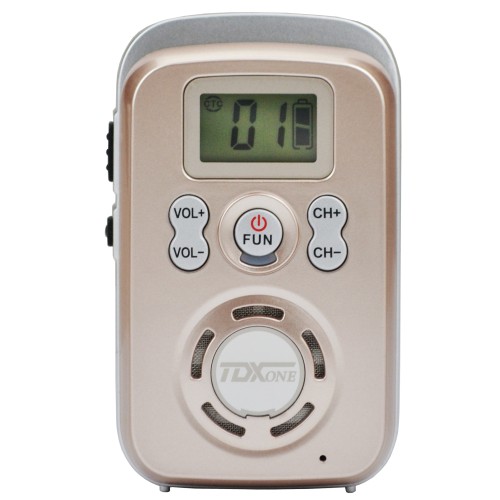

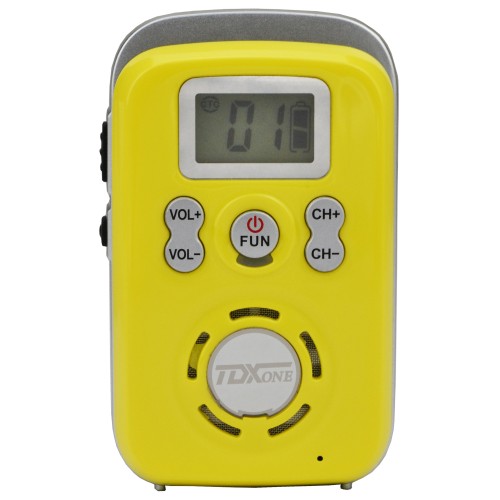

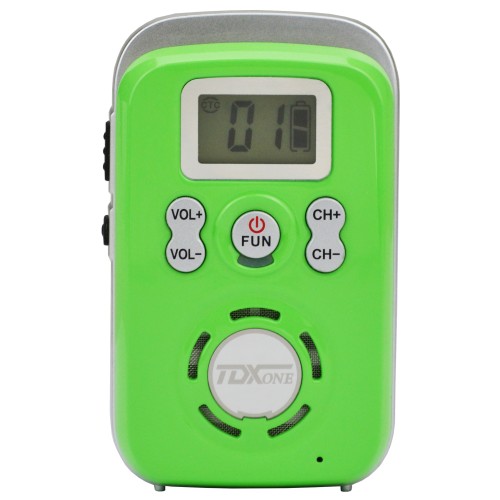

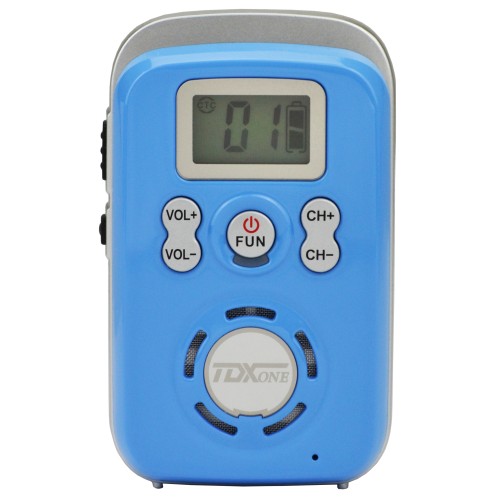

Colourful Housings Are Available

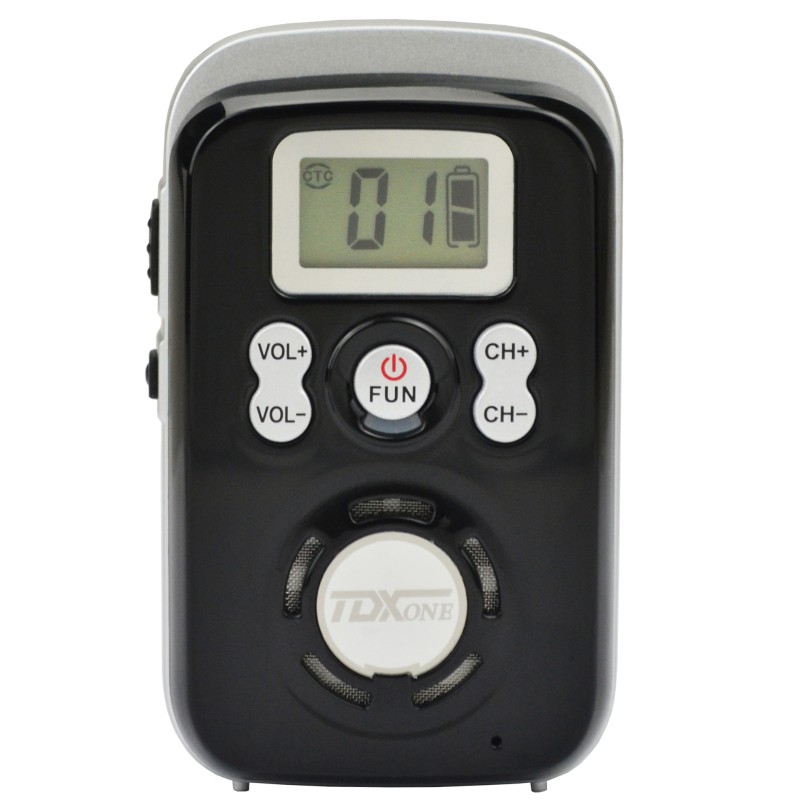

- Model: TD-Q3PS
- Availability: 1000
Optional Colors 100 Mile Walkie Talkie FM Radio UHF 450-470MHz 16 Channels 3W Intercom TD-Q3PS
Product Parameters
Related Products
-500x500.JPG)
<table border="0" cellpadding="0" cellspacing="0" width="330" style="width:248pt;" class="ke-zeroborder">
<tbody>
<tr>
<td colspan="2" height="21" class="xl67" width="330">
General
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Frequency Range
</td>
<td class="xl63" width="165">
136-174/400-470MHz
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Channel Capacity
</td>
<td class="xl63" width="165">
99
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Frequency Spacing
</td>
<td class="xl63" width="165">
25/12.5KHz
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Working Voltage
</td>
<td class="xl63" width="165">
3.7V
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Battery Capacity
</td>
<td class="xl63" width="165">
1800mAh Li-ion battery
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Frequency Stability
</td>
<td class="xl63" width="165">
±2.5ppm
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Operating Temperature Range
</td>
<td class="xl64" width="165">
-25 °C to + 55°C
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Antenna Impedance
</td>
<td class="xl63" width="165">
50Ω
</td>
</tr>
<tr>
<td rowspan="2" height="40" class="xl65" width="165" style="border:.5pt solid black;">
Dimension
(Without antenna)
</td>
<td rowspan="2" class="xl65" width="165">
Approx:83x50x24mm
</td>
</tr>
<tr>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Weight (With Battery)
</td>
<td class="xl63" width="165">
115g
</td>
</tr>
<tr>
<td colspan="2" height="20" class="xl67" width="330">
Transmitter(ETSI EN 300 086 standard testing)
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Output Power
</td>
<td class="xl63" width="165">
≤3W
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Modulation Mode
</td>
<td class="xl63" width="165">
16KΦF3E / 8KΦF3E
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Modulation Limited
</td>
<td class="xl63" width="165">
±5KHf/±2.5KHf
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
FM Noise
</td>
<td class="xl63" width="165">
≥40/35dB
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Audio Distortion
</td>
<td class="xl63" width="165">
≤5%
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Residual Frequency Modulation
</td>
<td class="xl63" width="165">
-45dB/-40dB
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Adjacent Channel Power
</td>
<td class="xl63" width="165">
-70dB/-60dB
</td>
</tr>
<tr>
<td rowspan="2" height="40" class="xl65" width="165" style="border:.5pt solid black;">
Spurious And
Harmonic Wave
</td>
<td rowspan="2" class="xl65" width="165">
-36dBm<1GHz -30dBm>1GHz
</td>
</tr>
<tr>
</tr>
<tr>
<td colspan="2" height="20" class="xl67" width="330">
Receiver(ETSI EN 300 086 standard testing)
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Receiving Sensitivity
</td>
<td class="xl63" width="165">
≤0.18μV / 0.22μV
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Adjacent Channels Selectivity
</td>
<td class="xl63" width="165">
≥70dB/60dB
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Intermediation
</td>
<td class="xl63" width="165">
≥65dB/≥60dB
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
SNR
</td>
<td class="xl63" width="165">
≥50/45dB
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Audio Output Power
</td>
<td class="xl63" width="165">
≥1W
</td>
</tr>
<tr>
<td height="20" class="xl63" width="165">
Audio Distortion
</td>
<td class="xl63" width="165">
≤5%
</td>
</tr>
<tr>
<td colspan="2" height="40" class="xl63" width="330">
Note:Specifications are subject to change for improvements
without notice.
