Features
Frequency Range:136-174&400-470MHz
5W Output Power
128 Channels Capacity
Dual Band,Dual Frequency,Dual Standby
A/B Frequency Independent Operation
ANI Code
Wide/Narrow Bandwidth Selective
Chinese/English Voice Prompts
CTCSS/DCS Setting And Scanning
10 Groups for FM Radio Storage
Bright Flashlight Illumination
VOX Function
Time Out Timer(TOT)
8 Groups Scrambler Setting
2&5 tone Encoding And Decoding Code
Encrypted Conversation Setting
DTMF Decode And Encode
All Call, Group Call And Selective Call
DTMF Stun&Kill Function
-800x800.JPG)
-500x500.JPG)
-500x500.JPG)
-500x500.JPG)
- Model: TD-Q7-1
- Availability: 1000

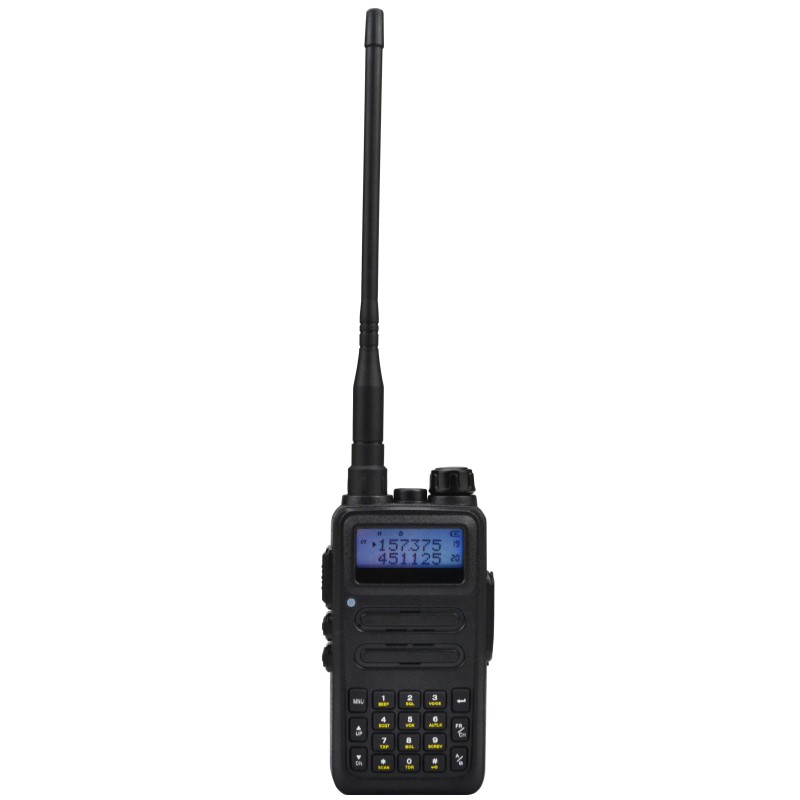

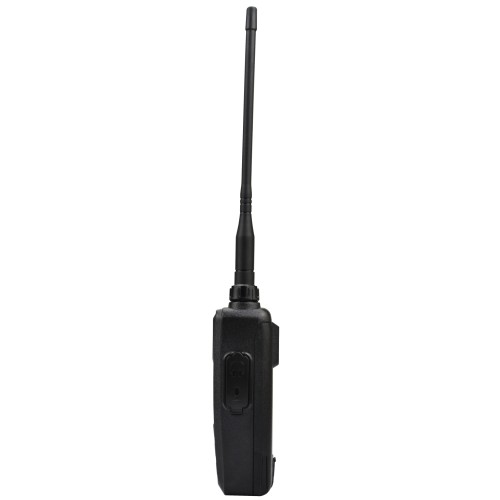

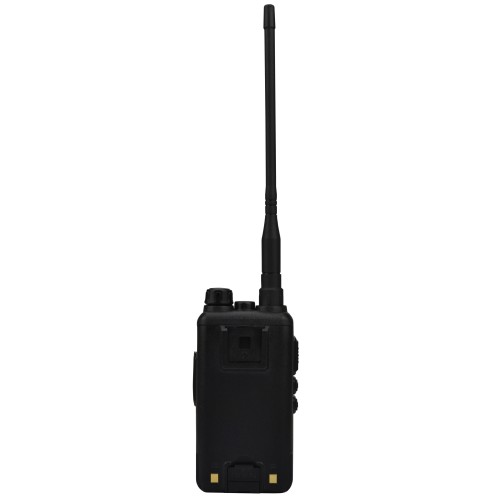

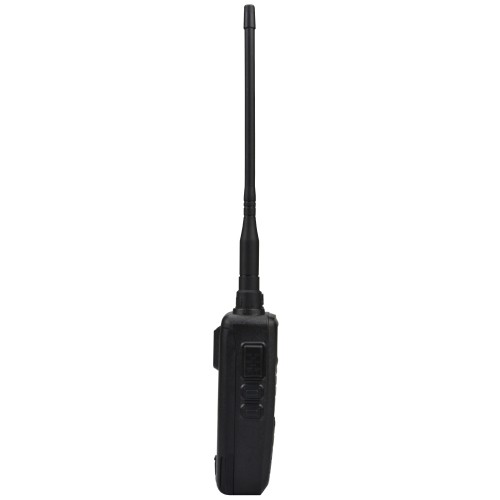

Hot Sales 5W Handheld Ham 10KM 136-174&400-470MHz Dualband Two Way Radio TD-Q7-1
Product Parameters
Related Products
-500x500.JPG)
| General | |
| Frequency Range | 136-174&400-470MHz |
| Channel Capacity | 128 |
| Frequency Spacing | 25/12.5KHz |
| Working Voltage | 7.4V |
| Battery Capacity | 1800mAh Li-ion battery |
| Frequency Stability | ±2.5ppm |
| Operating Temperature Range | -25 °C to + 55°C |
| Antenna Impedance | 50Ω |
| Dimension (Without Antenna) | Approx:110x56x30mm |
| Weight(With Battery) | 220g |
| Transmitter(ETSI EN 300 086 standard testing) | |
| Output Power | 5W/1W |
| Modulation Mode | 16KΦF3E / 8KΦF3E |
| Modulation Limited | ±5KHf / ±2.5KHf |
| FM Noise | ≥40 / 35dB |
| Audio Distortion | ≤5% |
| Residual Frequency Modulation | -45dB / -40dB |
| Adjacent Channel Power | -70dB / -60dB |
| Spurious And Harmonic Wave | -36dBm<1GHz -30dBm>1GHz |
| Receiver(ETSI EN 300 086 standard testing) | |
| Receiving Sensitivity | ≤0.18μV / 0.22μV |
| Adjacent Channels Selectivity | ≥70dB / 60dB |
| Intermediation | ≥65dB / ≥60dB |
| SNR | ≥50 / 45dB |
| Audio Output Power | ≥1W |
| Audio Distortion | ≤5% |
| Note:Specifications are subject to change for improvements without notice. | |
