Features
Frequency Range:136-174/400-470MHz
3W Output Power
99 Channels Capacity
FM Radio(Selectable)
Monitor
Emergency Alarm
Scanning Function
Battery Power Level
Keypad Lockout Function
CTCSS/DCS
Time Out Timer(TOT)
Time Out Alert(TOA)
Busy Channel Lockout
Low Battery Power Alert
Battery Power Level
-800x800.JPG)
-500x500.JPG)
-500x500.JPG)
-500x500.JPG)
- Model: TD-X3
- Availability: 500

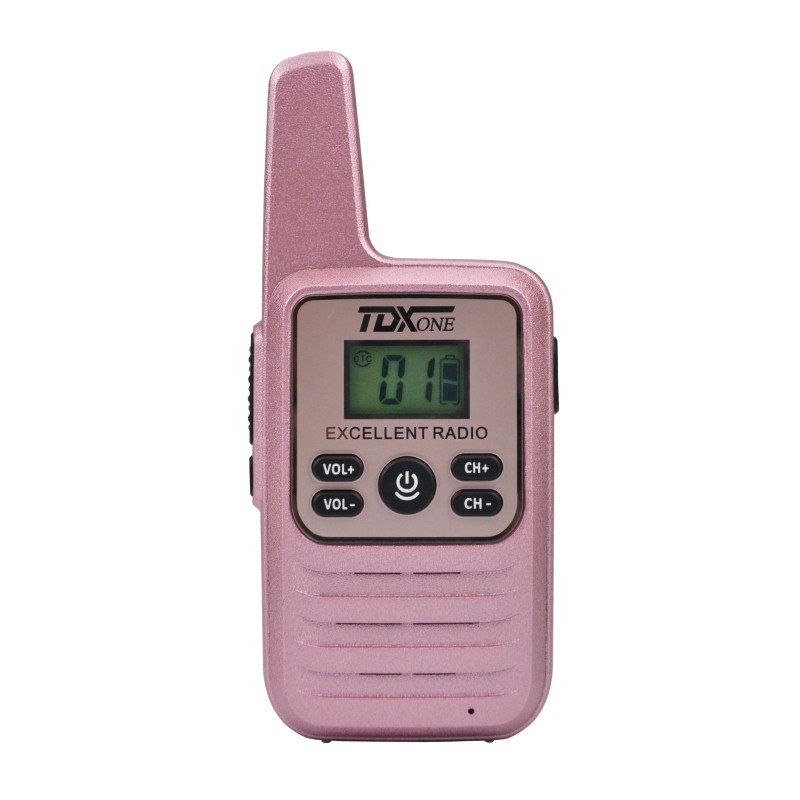

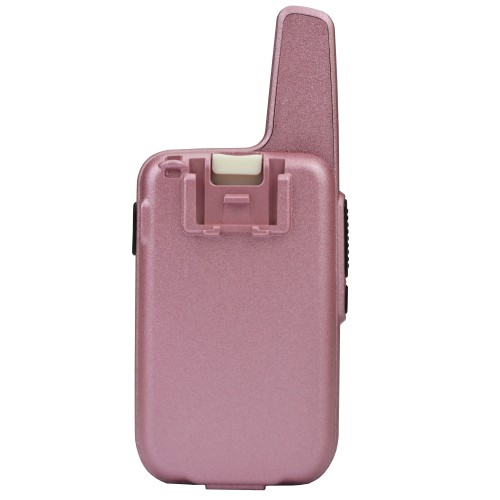

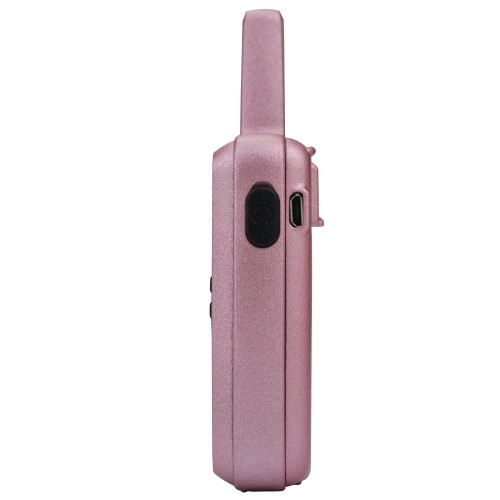

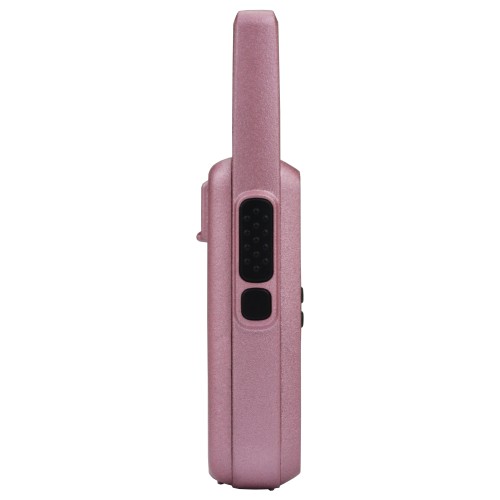

Cheap Ham Single Band Transceiver FM Two Way Radio Walkie Talkie Transmitter TD-X3
Product Parameters
-500x500.JPG)
| General | |
| Frequency Range | 136-174/400-470MHz |
| Channel Capacity | 99 |
| Frequency Spacing | 25/12.5KHz |
| Working Voltage | 3.7V |
| Battery Capacity | 1600mAh Li-ion battery |
| Frequency Stability | ±2.5ppm |
| Operating Temperature Range | -25 °C to + 55°C |
| Antenna Impedance | 50Ω |
| Dimension | Approx:85x54x24mm |
| Weight | 111g |
| Transmitter(ETSI EN 300 086 standard testing) | |
| Output Power | ≤3W |
| Modulation Mode | 16KΦF3E / 8KΦF3E |
| Modulation Limited | ±5KHf / ±2.5KHf |
| FM Noise | ≥40/35dB |
| Audio Distortion | ≤5% |
| Residual Frequency Modulation | -45dB / -40dB |
| Adjacent Channel Power | -70dB / -60dB |
| Spurious And Harmonic Wave | -36dBm<1GHz -30dBm>1GHz |
| Receiver(ETSI EN 300 086 standard testing) | |
| Receiving Sensitivity | ≤0.18μV / 0.22μV |
| Adjacent Channels Selectivity | ≥70dB / 60dB |
| Intermediation | ≥50 / 45dB |
| SNR | ≥50/45dB |
| Audio Output Power | ≥1W |
| Audio Distortion | ≤5% |
| Note:Specifications are subject to change for improvements without notice. | |
