Features
Frequency Range:136-174&400-470MHz
5W Output Power
240 Channels Capacity
Dual Band,Dual Frequency
Dual Display,Dual Standby
Wide/Narrow Bandwidth Selectable
A/B Frequency Independent Operation
Time Out Timer(TOT)
Time Out Alert(TOA)
CTCSS/DCSS Setting
VOX Function
Flashlight Illumination
Automatic Power Off(APO)
Date&Time Setting
FM Radio
Busy Channel Lockout
Battery Power Saving
Priority Channel Scan
-800x800.JPG)
-500x500.JPG)
-500x500.JPG)
-500x500.JPG)
- Model: TD-8P
- Availability: 1000

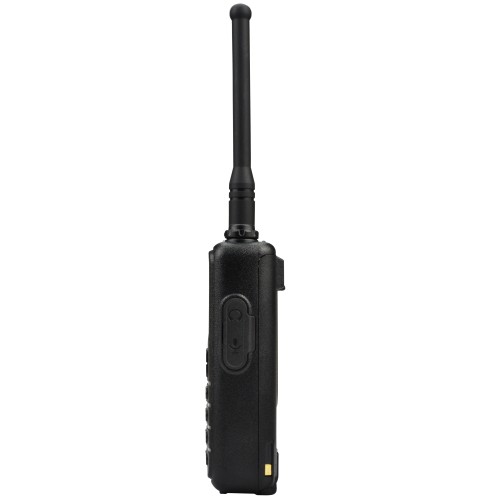

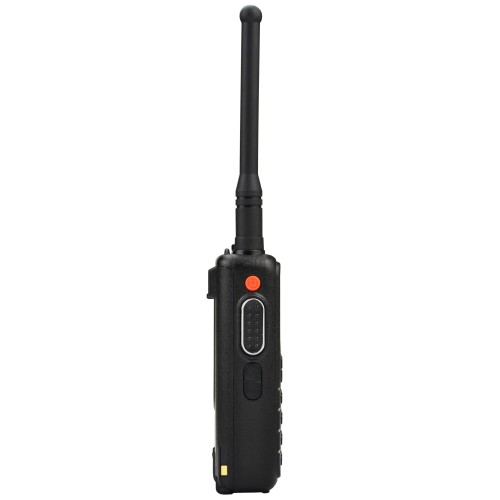

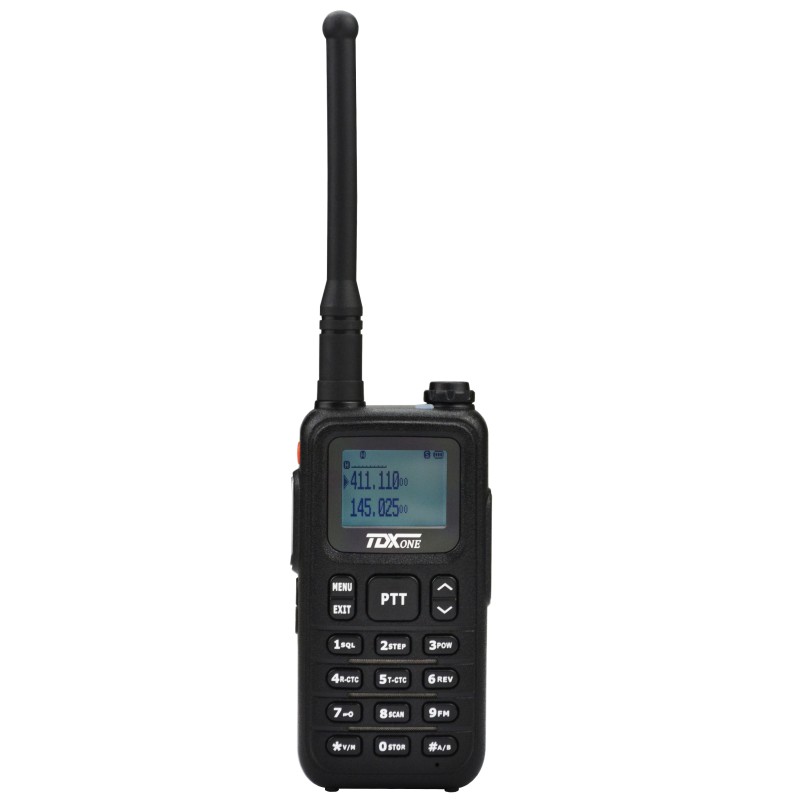

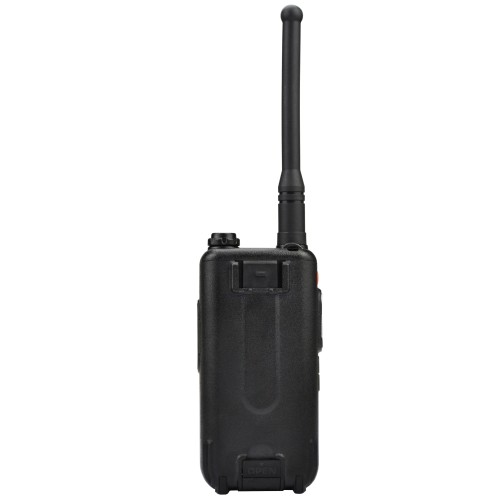

Ham High Quality Mobile Two Way Radio 5W Dualband Long Range Walkie Talkie TD-8P
Product Parameters
Related Products
-500x500.jpg)
| General | |
| Frequency Range | 136-174&400-470MHz |
| Channel Capacity | 240 |
| Frequency Spacing | 25/12.5KHz |
| Working Voltage | 7.4V |
| Battery Capacity | 1800mAh Li-ion battery |
| Frequency Stability | ±2.5ppm |
| Operating Temperature Range | -25 °C to + 55°C |
| Antenna Impedance | 50Ω |
| Dimension (Without Antenna) | Approx:119x56x31mm |
| Weight (With Battery) | 211g |
| Transmitter(ETSI EN 300 086 standard testing) | |
| Output Power | VHF:5/1W UHF:4/1W |
| Modulation Mode | 16KΦF3E / 8KΦF3E |
| Modulation Limited | ±5KHz/±2.5KHz |
| FM Noise | ≥40/35dB |
| Audio Distortion | ≤5% |
| Residual Frequency Modulation | 45dB/-40dB |
| Adjacent Channel Power | -70dB/-60dB |
| Spurious And Harmonic Wave | -36dBm<1GHz -30dBm>1GHz |
| Receiver(ETSI EN 300 086 standard testing) | |
| Receiving Sensitivity | ≤0.18μV / 0.22μV |
| Adjacent Channels Selectivity | ≥70dB/60dB |
| Intermediation | ≥65dB/≥60dB |
| SNR | ≥50/45dB |
| Audio Output Power | 1W |
| Audio Distortion | ≤5% |
| Note:Specifications are subject to change for improvements without notice. | |
